The development of our own control units allows us to be able to customize the required features for the required applications in the best possible way.

By using a GPR control unit and an antenna made by us, you will be presented with all the subtle improvements and benefits that we are able to implement.

These special adjustments start with low level tuning and programming instructions and end up with rich features in the output file format.

We strongly believe that different applications require different technology approach and that's why we provide a broad line of control units and antennas so you can choose the best performance for your field of application.

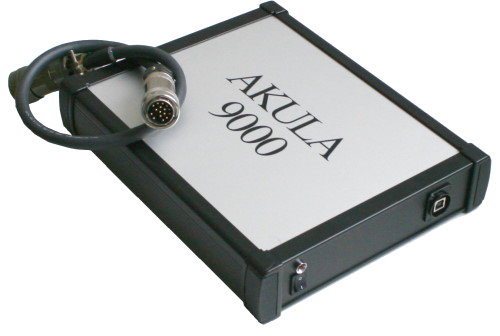

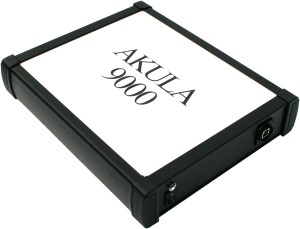

This control unit is made completely of solid aluminum pieces and all the material used in the manufacturing process have been carefully selected to supply the highest standard of quality and durability for many years to come. In fact, we are so confident on the quality of the unit that we offer not one, and not even two, but three year warranty on the main unit.

What extras do you get with Akula 9000?

The Akula 9000 can be used with all our antennas with center frequencies up to 700MHz. A unique feature of this ground penetrating radar control unit compared to other similar equipment in the market is that it supports intelligent antennas. Upon power up the unit communicates with the antenna and establishes an exchange of data that will allow for identification and calibration of the internal parameters of the radar depending on the type of the antenna connected. This might seem as not a big deal since you already know what kind of antenna you are attaching to your radar, but there is more to it that the first impression seems to reveal. The Akula 9000 recalibrate the unit so you get the best possible data over and again without having to send anything back to the factory. This in a big advantage over the competition.

The concept with the intelligent antennas is not all about recalibration, but also about protection and early fault detection. The communication with the antenna is carried on with an well proven industry standard protocol allowing for long cables to be used and no interference introduced.

Another unique feature of our Akula 9000 is that it integrates the gps coordinates data in each and every trace of the radargram. This can be retrieved later on with our first class post processing software GPRSoft PRO to get not only the features under ground, but also their exact position.

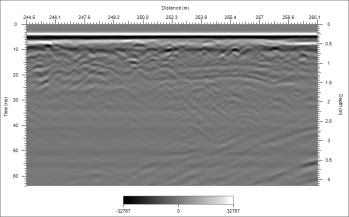

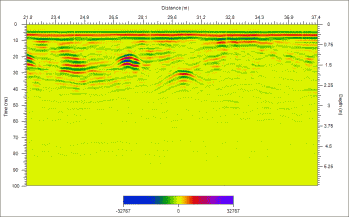

All that sounds good, but what about the data?

The Akula 9000 comes complete with:

a netbook where the data is stored and our collecting software GAS and post-processing software GPRSoft Std are installed,

a control cable,

a battery,

a charger and

a sturdy transit case



You still will need an antenna and probably a survey cart to be comfortable during the survey. A comprehensive list of all available options and accessories is provided in the user manual of the unit. For registered customers a training session is free of charge at our facilities in Boden, Sweden.

It has taken us a little time to release this unit and one of the main factors contributing to that is that we do not compromise data quality. We strived to get the best possible data quality and we believe we succeeded beyond expectations.
